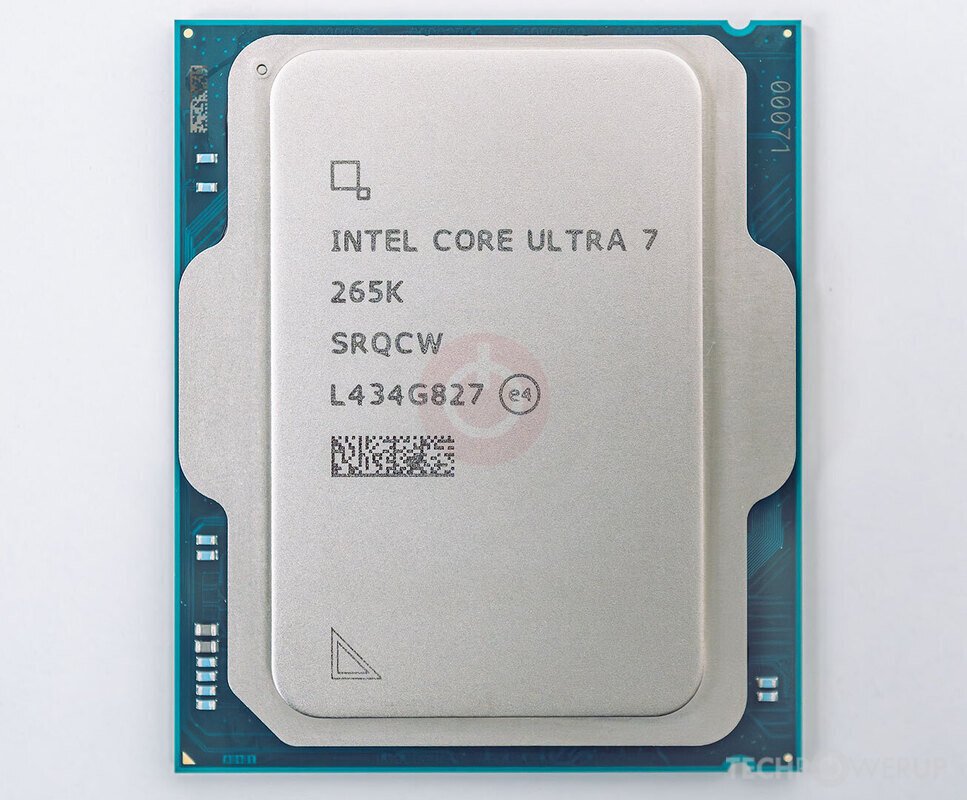

Intel Core Ultra 7 265K Processor

Intel Core Ultra 7 265K — Overview
The Intel Core Ultra 7 265K, released as part of Intel’s Arrow Lake-S lineup in October 2024, bridges the gap between high-performance desktop and productivity workloads, with overclocking capabilities for enthusiasts

Architecture & Core Configuration

• Utilizes a hybrid 3 nm “Arrow Lake” architecture, combining:

  • 8 Performance (P-cores)

  • 12 Efficiency (E-cores)
    Totaling 20 cores and 20 threads, as Intel has removed SMT for better energy efficiency

• Cache:

  • 36 MB of L2 cache (distributed among cores)

  • 30 MB of shared L3 cache

    Specifications:

    Model	Intel Core Ultra 7 Processor 265K
    Essentials
    Product Collection	Intel Core Ultra Processors (Series 2)
    Vertical Segment	Desktop
    CPU Specifications
    Total Cores	20
    of Performance-cores	8
    of Efficient-cores	12
    Total Threads	20
    Max Turbo Frequency	5.5 GHz
    Intel Turbo Boost Max Technology 3.0 Frequency	5.5 GHz
    Performance-core Max Turbo Frequency	5.4 GHz
    Efficient-core Max Turbo Frequency	4.6 GHz
    Performance-core Base Frequency	3.9 GHz
    Efficient-core Base Frequency	3.3 GHz
    Cache	30 MB Intel Smart Cache
    Total L2 Cache	36 MB
    Processor Base Power	125 W
    Maximum Turbo Power	250 W
    Intel Deep Learning Boost (Intel DL Boost) on CPU	Yes
    AI Software Frameworks Supported by CPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
    CPU Lithography	TSMC N3B
    Memory Specifications
    Max Memory Size (dependent on memory type)	192 GB
    Memory Types	Up to DDR5 6400 MT/s
    Maximum Memory Speed	6400 MHz
    Max of Memory Channels	2
    ECC Memory Supported	Yes
    GPU Specifications
    GPU Name	Intel Graphics
    Graphics Base Frequency	300 MHz
    Graphics Max Dynamic Frequency	2 GHz
    GPU Peak TOPS (Int8)	8
    Graphics Output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
    Xe-cores	4
    Max Resolution (HDMI)	4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
    Max Resolution (DP)	8K @ 60Hz
    Max Resolution (eDP – Integrated Flat Panel)‡	4K @ 60Hz
    DirectX Support	12
    OpenGL Support	4.5
    OpenCL Support	3
    Intel Quick Sync Video	Yes
    of Displays Supported	4
    Device ID	0x7D67
    Intel Deep Learning Boost (Intel DL Boost) on GPU	Yes
    NPU Specifications
    NPU Name	Intel AI Boost
    NPU Peak TOPS (Int8)	13
    Sparsity Support	Yes
    Windows Studio Effects Support	Yes
    AI Software Frameworks Supported by NPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
    Expansion Options
    Direct Media Interface (DMI) Revision	4
    Max  of DMI Lanes	8
    Intel Thunderbolt 4	Yes
    Scalability	1S Only
    PCI Express Revision	5.0 and 4.0
    PCI Express Configurations ‡	Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
    Max # of PCI Express Lanes	24
    Package Specifications
    Sockets Supported	FCLGA1851
    Thermal Solution Specification	PCG 2020A
    Max Operating Temperature	105 °C
    Advanced Technologies
    Intel Volume Management Device (VMD)	Yes
    Intel Gaussian & Neural Accelerator	3.5
    Intel Thread Director	Yes
    Intel Speed Shift Technology	Yes
    Intel Turbo Boost Max Technology 3.0	Yes
    Intel Turbo Boost Technology	2.0
    Intel 64	Yes
    Instruction Set	64-bit
    Instruction Set Extensions	Intel SSE4.1, Intel SSE4.2, Intel AVX2
    Idle States	Yes
    Enhanced Intel SpeedStep Technology	Yes
    Thermal Monitoring Technologies	Yes
    Security & Reliability
    Intel vPro Eligibility	Intel vPro Enterprise, Intel vPro Platform
    Intel Threat Detection Technology (TDT)	Yes
    Intel Active Management Technology (AMT)	Yes
    Intel Standard Manageability (ISM)	Yes
    Intel Remote Platform Erase (RPE)	Yes
    Intel One-Click Recovery	Yes
    Intel Hardware Shield Eligibility	Yes
    Intel Control-Flow Enforcement Technology	Yes
    Intel Total Memory Encryption – Multi Key	Yes
    Intel AES New Instructions	Yes
    Secure Key	Yes
    Intel Trusted Execution Technology	Yes
    Execute Disable Bit	Yes
    Intel OS Guard	Yes
    Mode-based Execute Control (MBEC)	Yes
    Intel Stable IT Platform Program (SIPP)	Yes
    Intel Virtualization Technology with Redirect Protection (VT-rp)	Yes
    Intel Virtualization Technology (VT-x)	Yes
    Intel Virtualization Technology for Directed I/O (VT-d)	Yes
    Intel VT-x with Extended Page Tables (EPT)	Yes
    Warranty	3 Years
